Product

Solid State Drive (SSD)

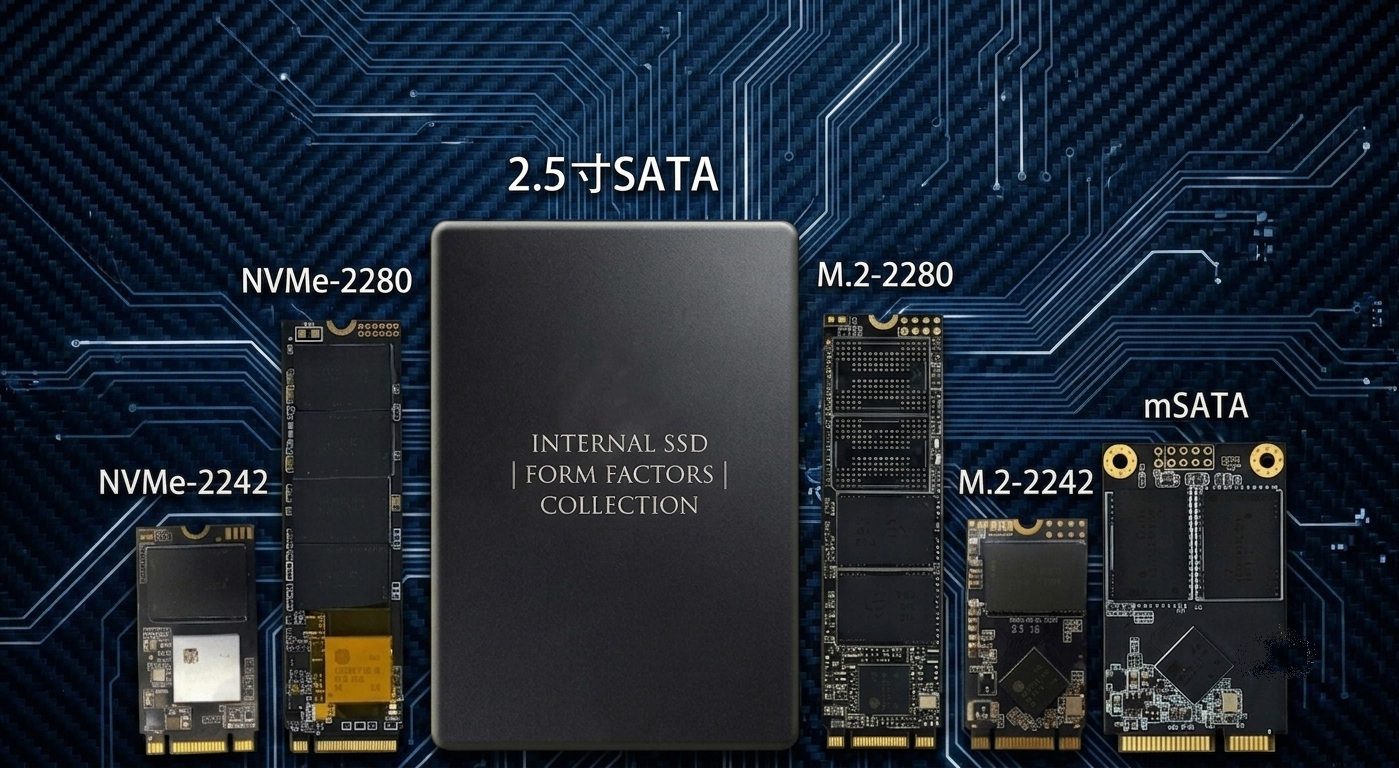

From compact BGA packages to full-size 2.5-inch drives, CP Vault SSDs deliver a comprehensive range of storage solutions across four major form factors, including M.2 2280, M.2 2242, mSATA, and 2.5-inch SATA SSDs. Supporting SATA III and PCIe interfaces, our SSD portfolio covers capacities from 8GB to 7.68TB, meeting diverse requirements from embedded systems to enterprise applications.

Built with premium OEM NAND flash, proprietary firmware, and optimized high-performance controllers, CP Vault SSDs are available in both TLC and MLC product series, offering the right balance of performance, endurance, and reliability for different application scenarios.

Designed for industrial PCs, edge computing, enterprise servers, and large-scale data centers, CP Vault SSDs deliver exceptional compatibility, long-term stability, and customized storage solutions tailored to customer requirements.

Driven by the advancement of domestic innovation, CP Vault continues to accelerate local platform certifications and ecosystem integration, supporting the next generation of high-reliability SSD technology.

Download

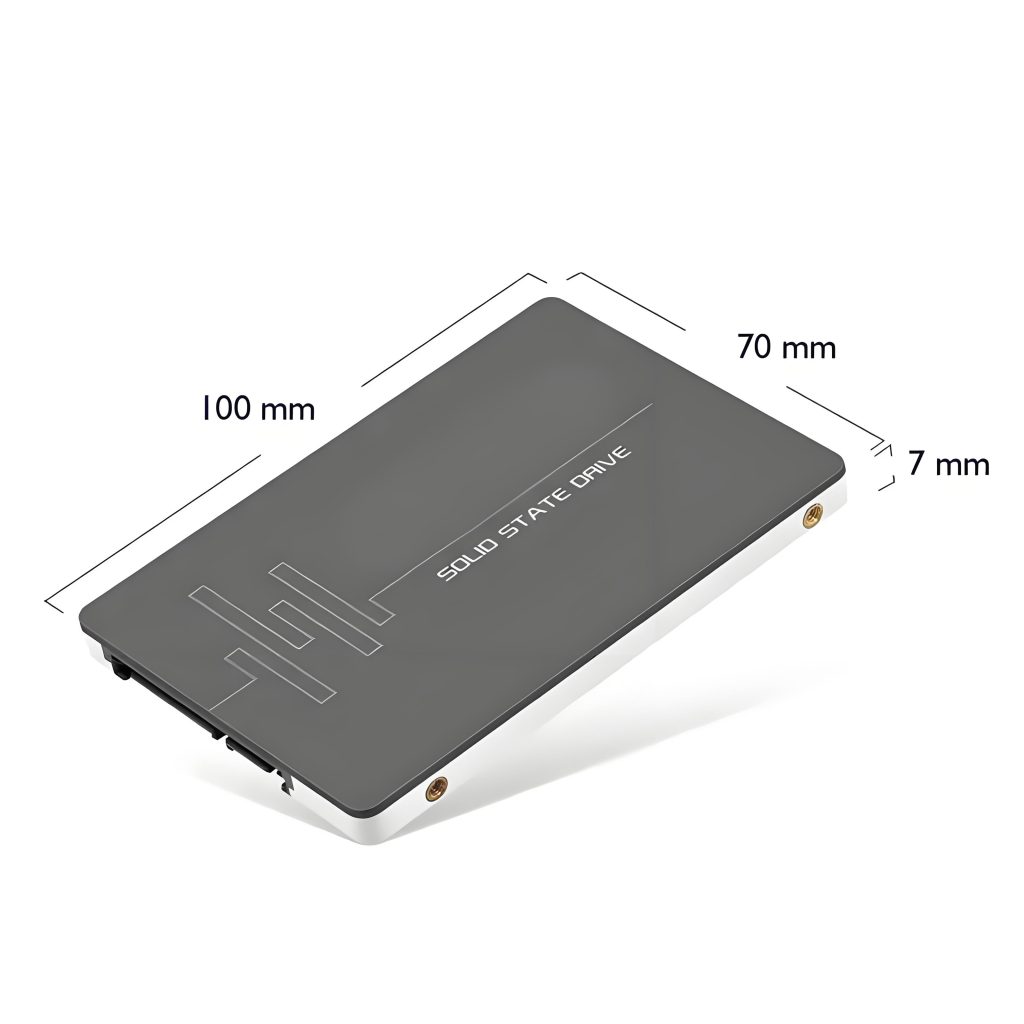

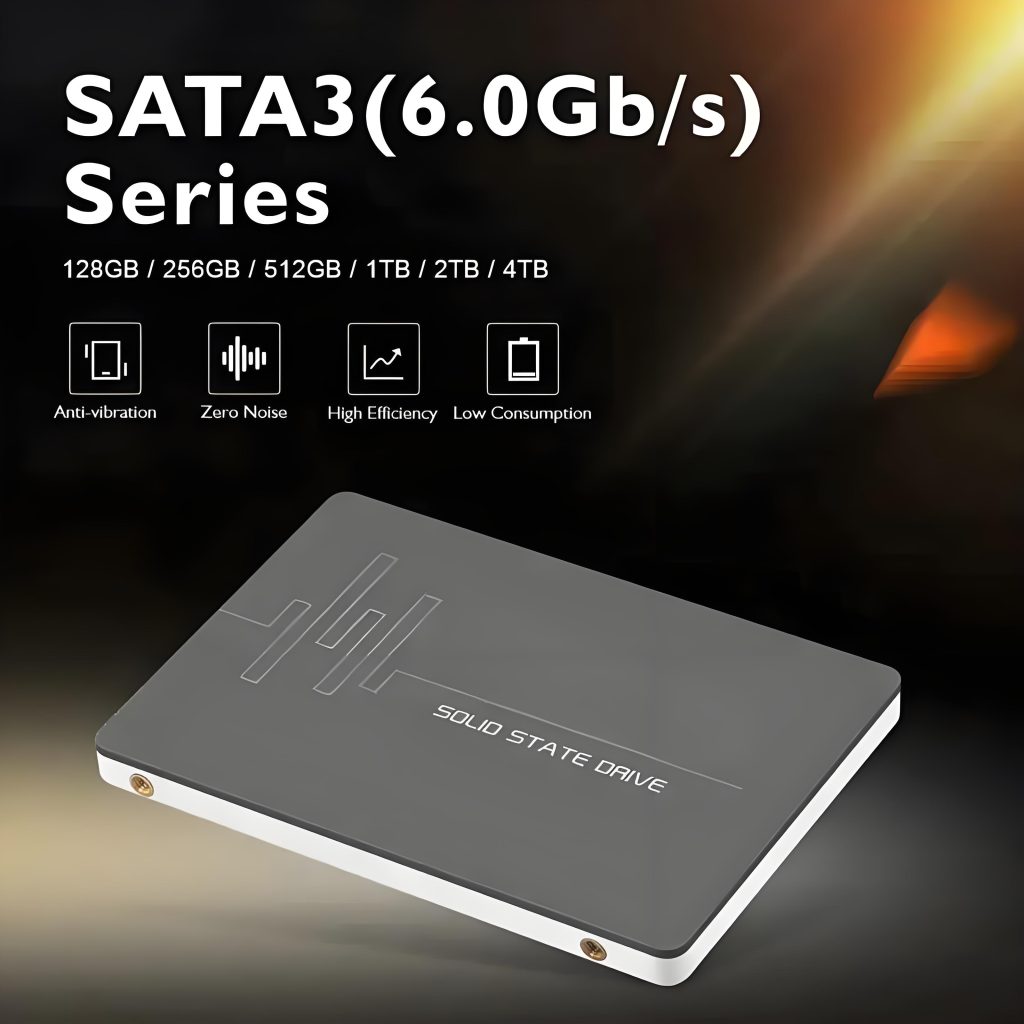

SATA 3.0 series（2.5 Inch）→ CPV-S3T Series
Model	Capacity	Read(MB/s)	Write(MB/s)	Interface	Flash Type	Warranty	Operating temperature
CPV-S3T-064G	64G	500	400	SATA 3.0	TLC	3 Years	0~70°C
CPV-S3T-128G	128GB	500	400	SATA 3.0	TLC	3 Years	0~70°C
CPV-S3T-256G	256GB	500	400	SATA 3.0	TLC	3 Years	0~70°C
CPV-S3T-512G	512GB	500	400	SATA 3.0	TLC	3 Years	0~70°C
CPV-S3T-1T	1TB	500	400	SATA 3.0	TLC	3 Years	0~70°C
CPV-S3T-2T	2TB	500	400	SATA 3.0	TLC	3 Years	0~70°C
CPV-S3T-120G	120G	500	400	SATA 3.0	TLC	3 Years	0~70°C
CPV-S3T-240G	240G	500	400	SATA 3.0	TLC	3 Years	0~70°C
CPV-S3T-480G	480G	500	400	SATA 3.0	TLC	3 Years	0~70°C

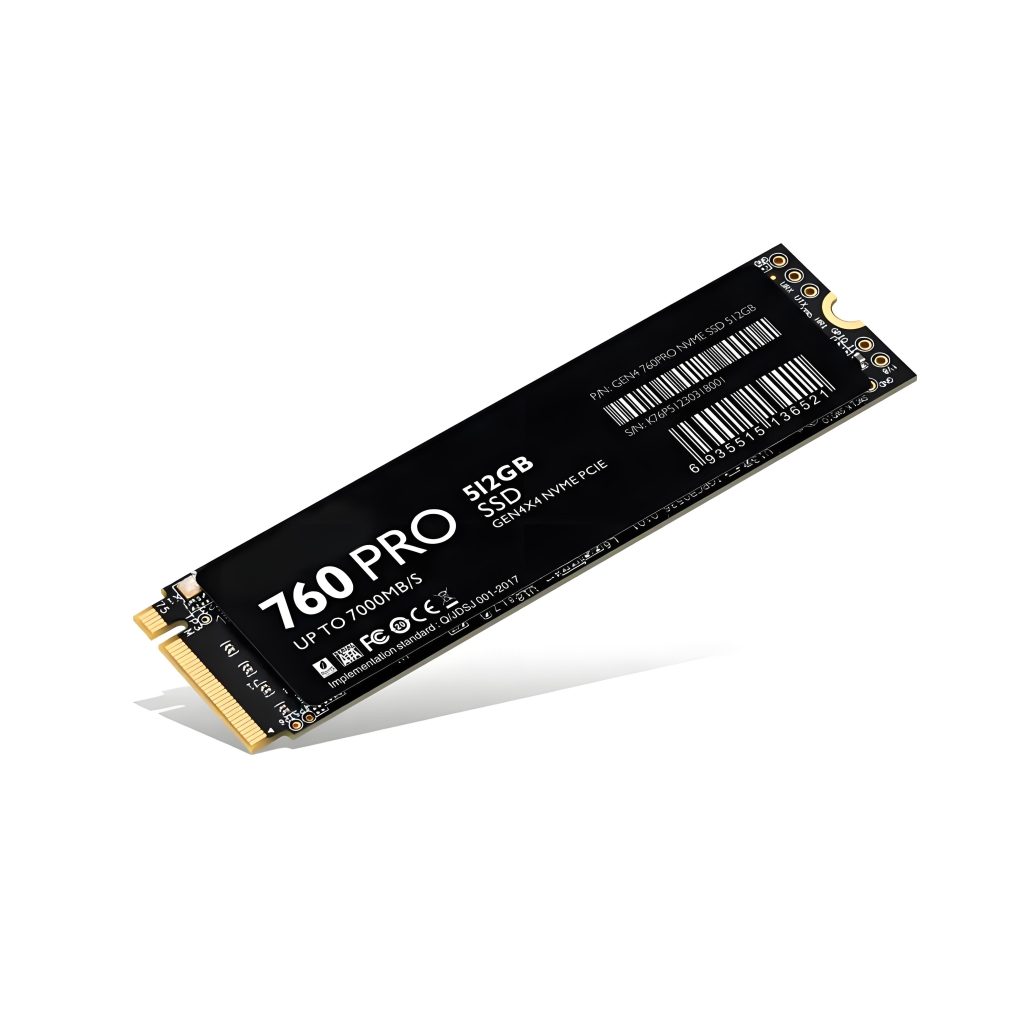

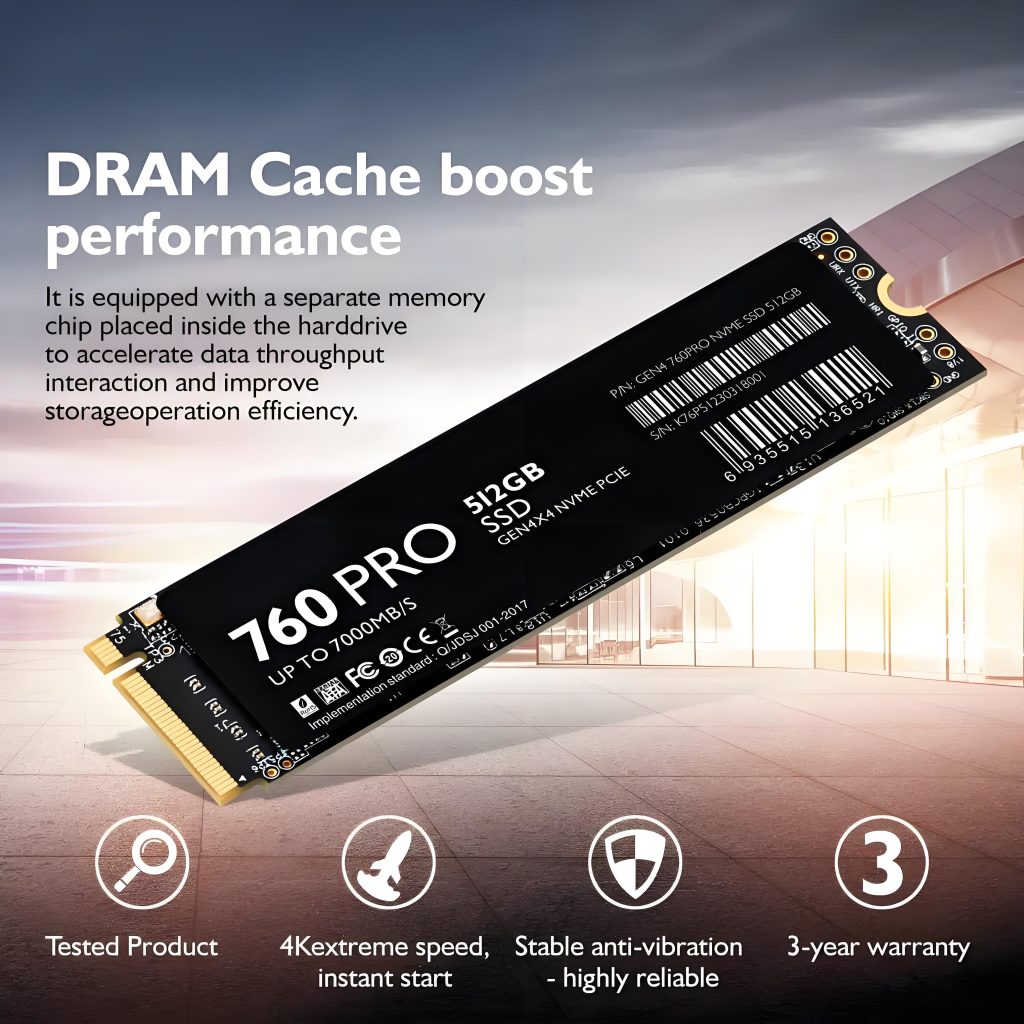

M.2 NVMe Series（2280，PCIe 3.0）→ CPV-N3T Series
Model	Capacity	Read(MB/s)	Write(MB/s)	Interface	Protocol	Flash Type	Warranty	Operating temperature
CPV-N3T80-128G	128GB	3200	2000	M.2 PCIe 3.0	NVMe	TLC	3 Years	0~70°C
CPV-N3T80-256G	256GB	3200	2000	M.2 PCIe 3.0	NVMe	TLC	3 Years	0~70°C
CPV-N3T80-512G	512GB	3200	2000	M.2 PCIe 3.0	NVMe	TLC	3 Years	0~70°C
CPV-N3T80-1T	1TB	3200	2000	M.2 PCIe 3.0	NVMe	TLC	3 Years	0~70°C
CPV-N3T80-2T	2TB	3200	2000	M.2 PCIe 3.0	NVMe	TLC	3 Years	0~70°C
CPV-N3T80-4T	4TB	3200	2000	M.2 PCIe 3.0	NVMe	TLC	3 Years	0~70°C
M.2 NVMe Series（2242，PCIe 3.0）→ CPV-N3T Series
CPV-N3T42-256G	256GB	3500	3000	M.2 PCIe 3.0	NVMe	TLC	3 Years	0~70°C
CPV-N3T42-512G	512GB	3500	3000	M.2 PCIe 3.0	NVMe	TLC	3 Years	0~70°C
CPV-N3T42-1T	1TB	3500	3000	M.2 PCIe 3.0	NVMe	TLC	3 Years	0~70°C

mSATA Industrial Series → CPV-M3T（TLC）/ CPV-M3L（MLC）
Model	Capacity	Read(MB/s)	Write(MB/s)	Interface	Flash Type	Application	Operating temperature
CPV-M3T-032G	32GB	500	450	mSATA	TLC	Embedded Systems / Legacy Laptops	-40~80°C
CPV-M3T-064G	64GB	500	450	mSATA	TLC	Embedded Systems / Legacy Laptops	-40~80°C
CPV-M3T-128G	128GB	500	450	mSATA	TLC	Embedded Systems / Legacy Laptops	-40~80°C
CPV-M3T-256G	256GB	500	450	mSATA	TLC	Embedded Systems / Legacy Laptops	-40~80°C
CPV-M3T-512G	512GB	500	450	mSATA	TLC	Embedded Systems / Legacy Laptops	-40~80°C
CPV-M3T-1T	1TB	500	450	mSATA	TLC	Embedded Systems / Legacy Laptops	-40~80°C
CPV-M3L-032G	32GB	500	450	mSATA	MLC	Industrial Equipment / Long-Term Reliable Operation	-40~80°C
CPV-M3L-064G	64GB	500	450	mSATA	MLC	Industrial Equipment / Long-Term Reliable Operation	-40~80°C
CPV-M3L-128G	128GB	500	450	mSATA	MLC	Industrial Equipment / Long-Term Reliable Operation	-40~80°C
CPV-M3L-256G	256GB	500	450	mSATA	MLC	Industrial Equipment / Long-Term Reliable Operation	-40~80°C
CPV-M3L-512G	512GB	500	450	mSATA	MLC	Industrial Equipment / Long-Term Reliable Operation	-40~80°C
